Fusion 360 ISO Metric Thread Profiles Ideal for 3D printing

$5.99

Add ISO Metric thread profiles to Fusion 360 with additional clearances optimized for 3D printing, ensuring reliable, easy-to-fit threads every time.

Category:

    Custom made ISO Metric Thread Profiles for Fusion 360 with additional tolerances for better 3D printability.

    See the full blog writeup here: 3D printing threads is hard! Custom Threads in Fusion 360 makes it easy! – ReplicantFX

    Overview
    Take the guesswork out of creating 3D-printable threads in Fusion 360 with custom ISO Metric thread profiles featuring precise tolerances. Designed specifically for FDM and resin printers, these profiles allow for easy, reliable assembly without compromising fit or finish.

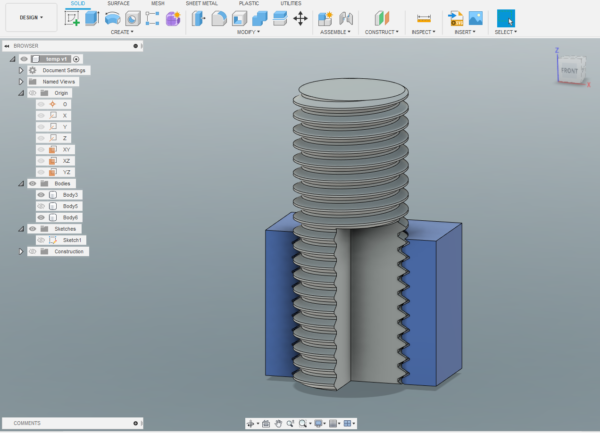

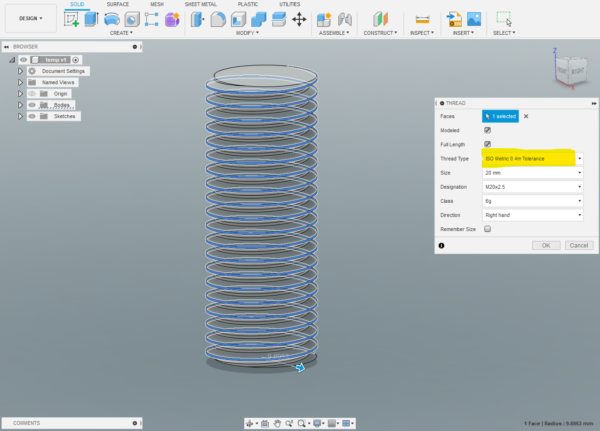

    Features

    • Custom Tolerances: ISO Metric Profiles include tolerance adjustments from 0.1mm to 1.0mm in 0.1mm increments for optimal printability.
    • Easy Installation: Simply install the add-in, restart Fusion 360, and access new profiles directly in the Thread tool—no manual editing required.
    • Consistent Performance: Eliminate scaling workarounds and achieve dependable, professional-grade results on every print.

    How It Works
    The add-in installs custom thread profiles for Fusion 360’s Thread tool, adding ISO Metric options with clearance adjustments optimized for 3D printing. It’s an effortless solution to ensure your threads are functional and fit right out of the printer.  Add-in will automatically run at startup to ensure thread profiles are not lost due to updates, ensuring a reliable workflow.

    Ideal for

    • Makers, engineers, and designers creating threaded parts for 3D printing
    • Projects like light saber hilts, mechanical assemblies, custom enclosures, and more

    What’s Included

    Fusion 360 Add-In that automatically adds and maintains a Full ISO Metric Thread Library ideal for 3D Printing

    • Full ISO Metric Standard, 0.25 mm through 1060 mm diameter
    • Left and Right handed threads
    • All Classes
    • All Designations
    • All with optional additional tolerance/clearance added for perfect 3D printed threads
      • 0.1 mm tolerance,
      • 0.2 mm tolerance,
      • 0.3 mm tolerance,
      • 0.4 mm tolerance,
      • 0.5 mm tolerance,
      • 0.6 mm tolerance,
      • 0.7 mm tolerance,
      • 0.8 mm tolerance,
      • 0.9 mm tolerance,
      • 1.0 mm tolerance,
    • Thread Test STL to determine the optimal thread for your 3D printer

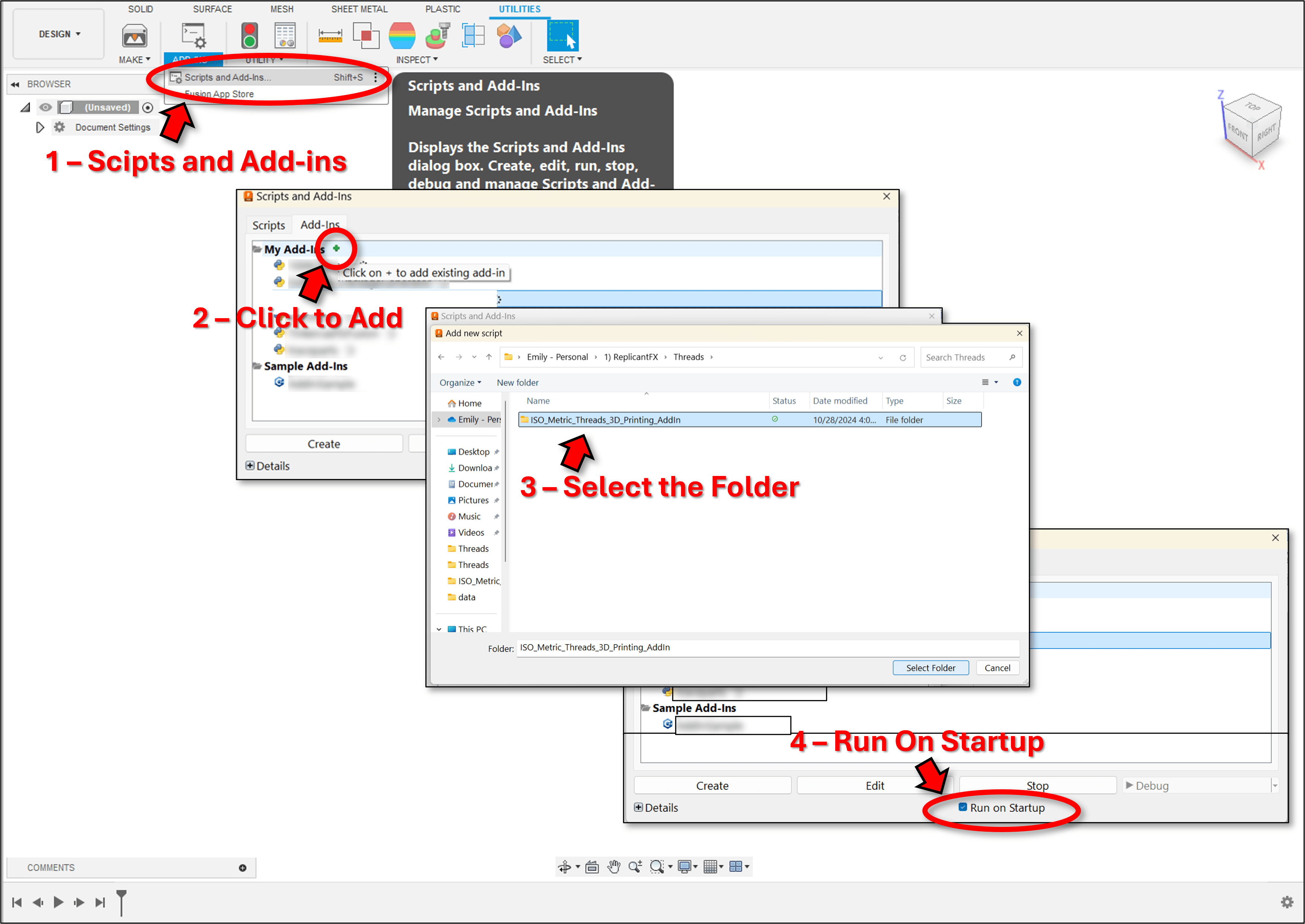

    Instructions

    1. After purchase a download will be provided
    2. After downloading, unzip the contents to a known location
    3. Open Fusion 360
    4. Select UTILITIES -> ADD-INS -> Scripts and Add-Ins…
    5. Select the Add-Ins tab
    6. Select the green “+” next to My Add-Ins
    7. Navigate to the folder “ISO_Metric_Threads_3D_Printing_Addin” and select this root folder
    8. Ensure “Run on Startup” is checked at the bottom of the Scripts and Add-Ins dialog box

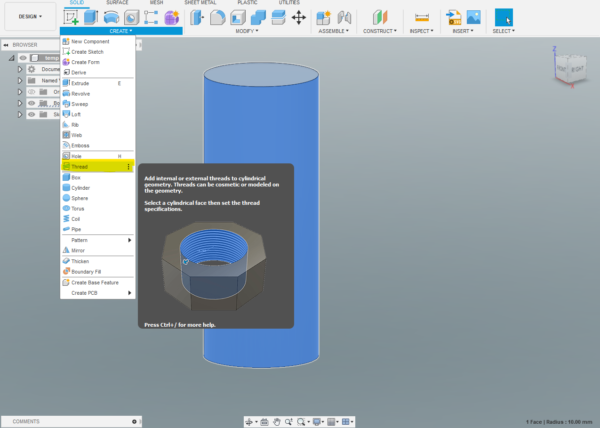

    9. Restart Fusion 360 and threads should now be available under CREATE->Threads->ISO METRIC…
